Leírás

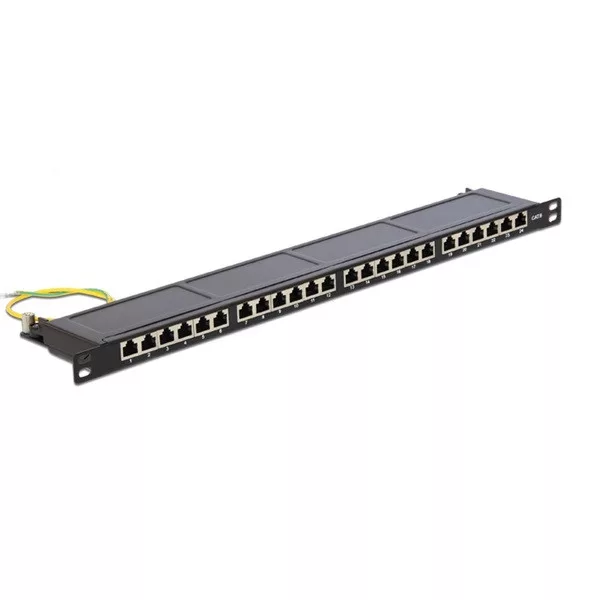

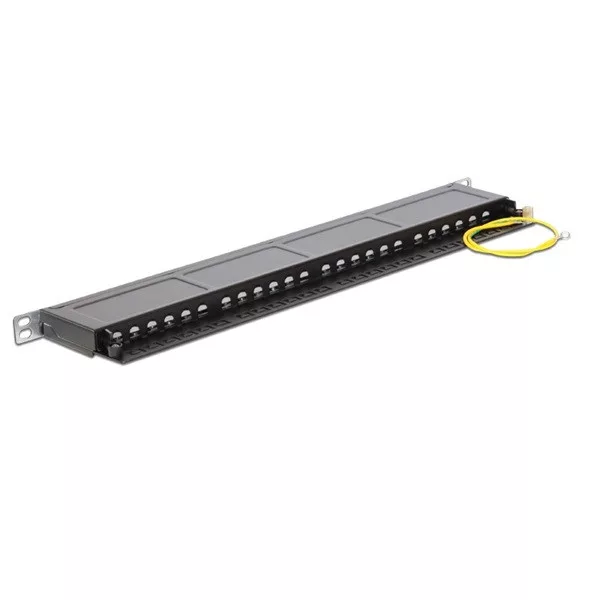

This Patch Panel by Delock can be mounted in a 19″ rack. At the LSA blocks you can install up to 24 network cables with a punch down tool. The small overall height makes a high port density possible.
Műszaki adatok
• Connectors:
external: 24 x RJ45 jack
internal: 24 x LSA block
• For mounting in 19″ racks, 0.5 U
• Cable routing 180°
• Shielded
• Cat.6
• TIA-568A/B pinout
• Cable diameter up to 0.644 mm (22 - 24 AWG)
• For solid or stranded wire
• Metal housing
• Colour: jet black RAL 9005
• Dimensions (WxHxD): ca. 482.6 x 22.23 x 78.0 mm

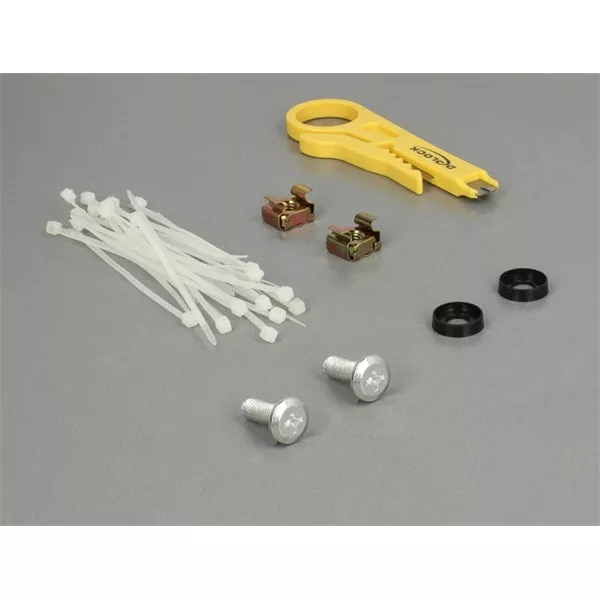

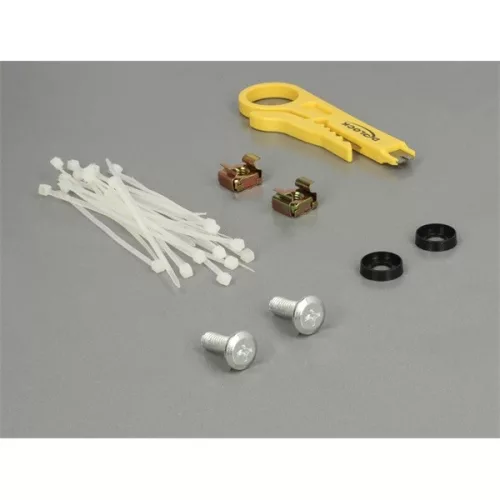

A csomag tartalma
• 19″ Patch Panel
• Installation manual
• 24 cable ties
• 4 screws and caged nuts
• Insertion Tool und Cable Stripper Delock 18411
Csomag
• White Box
