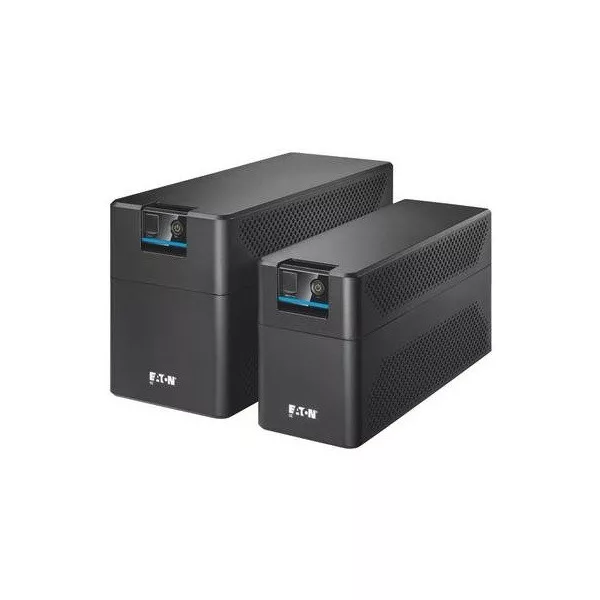

EATON 5E 700 USB IEC G2 UPS

• Részletek
• Adatok
• Vélemények

Részletek

Special features	Automatic Voltage Regulation (AVR) Saves space with a compact tower design HID-compliant USB port, for automatic integration with major operating systems (Windows/Mac OS/Linux)
Topology	Line-interactive
Form factor	Tower
Construction type	Free standing model
Color	Black
VA rating	700 VA
Wattage	360 W
Rack mounting kit	No
Package contents	(2) IEC-IEC output cables Quick start Safety instructions
Surge protection	Yes
Internal bypass	No
Hot swap power	No
Auto shutdown function	Yes
Primary frequency - max	63 Hz
Primary frequency - min	45 Hz
Input connection	C14
Input nominal voltage	230V default (220/230/240V)
Nominal frequency	50/60 Hz
Input frequency range	45-63 Hz
Receptacle	(4) C13
Number of Outputs C13	4
Voltage	230V
Output nominal voltage	230V
Feed type	1
Voltage type	AC
Runtime graph
Battery management	Automatic battery test, deep-discharge protection, cold-start capable
Battery rating	12 V / 7 Ah
Battery type	Sealed, lead-acid
Extended battery capability	No
Communication	USB port (HID compliant)
Expansion slots	No
Ethernet interface	No
Includes network card	No
Software compatibility	Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
User interface	LEDs
Type of interface	USB
Potential free switch contact	No
Relative humidity	0-90% non-condensing
Temperature range	0° to 40°C (32° to 104°F)
Operating temperature - max	40 °C
Operating temperature - min	0 °C
Output apparent power	700 VA
Input voltage - max	300 V
Input voltage - min	140 V
Output voltage - max	257 V
Output voltage - min	195 V
Secondary frequency - max	60 Hz
Secondary frequency - min	50 Hz
Battery quantity	1
Efficiency	95
Input voltage range	140-300 V
Output frequency	50/60 Hz
Output voltage range	195-257 V
Phase (input)	1
Phase (output)	1

Adatok

Típus:

Szünetmentes tápegység

Gyártói cikkszám:

5E700UI

Termék gyártója:

EATON

Garancia:

24 hónap

Bemeneti csatlakozás:

C14

Topológia:

Line-Interaktív

Kimeneti teljesítmény:

700

Kimeneti csatlakozó típusa:

C13

Szinusz hullám:

Nincs
