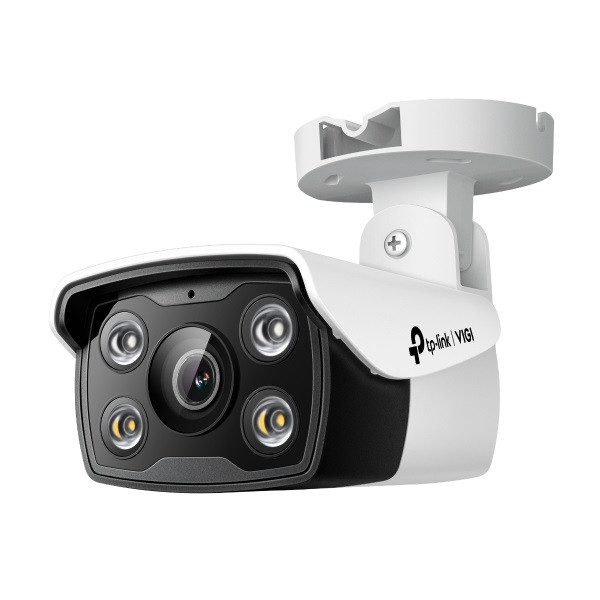

TP-Link IP csőkamera - C340 (FullColor, 4MP, 2,8mm, kültéri IP67, H265+, fehér LED30m, IR30m, 12VDC/PoE, mikrofon)

• Részletek
• Adatok
• Vélemények

Részletek

Kamera
Képérzékelő	1/3” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Aperture	2.8 mm: F1.6
	4 mm: F1.6
	6 mm: F1.6
Optika	Fixed focal lens (2.8 mm / 4 mm / 6 mm)
Lens Mount	M12
Min. szükséges megvilágítás	0 lux with IR/white Light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Day/Night/Auto/Schedule-Switch
Digital Noise Reduction	3D DNR
WDR	DWDR
Weatherproof Rating	IP66
IR Working Distance	30m
Illumination Distance	30 m
Látószög	(2.8mm) Horizontal FOV: 102°, Vertical FOV: 55°, Diagonal FOV: 122°
	(4mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
	(6mm) Horizontal FOV: 50°, vertical FOV: 27°, Diagonal FOV: 59°
LENS
Type	Fixed Focal Lens
Focal Length	2.8 mm/4 mm/6 mm
Aperture	2.8 mm: F1.6
	4 mm: F1.6
	6 mm: F1.6
FOV	2.8mm:
	Horizontal FOV: 102°, Vertical FOV: 55°, Diagonal FOV: 122°
	4mm:
	Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
	6mm:
	Horizontal FOV: 50°, vertical FOV: 27°, Diagonal FOV: 59°
Lens Mount	M12
DORI Distance	2.8 mm
	Detect: 64 m (209 ft)
	Observe: 27 m (87 ft)
	Recognize: 13 m (42 ft)
	Identify: 6 m (21 ft)
	4 mm
	Detect: 80 m (262 ft)
	Observe: 33 m (109 ft)
	Recognize: 16 m (52 ft)
	Identify: 8 m (26 ft)
	6 mm
	Detect: 128 m (420 ft)
	Observe: 53 m (175 ft)
	Recognize: 26 m (84 ft)
	Identify: 13 m (42 ft)
Angle Adjustment (Manual)
Range	Pan: -90° to 90°,
	Tilt: -90° to 90°
ILLUMINATOR
IR LED	Quantity: 2
	Range: 30m
	Wavelength: 850nm
White LED	Quantity: 2
	Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution	2560 X 1440
Main Stream	Frame Rate:
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution:
	2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
	Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream	Frame Rate:
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution:
	640x480, 352x288, 320x240
	Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
	Sub-Stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps
	Sub-Stream: 64 Kbps to 512 Kbps
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	DWDR
SNR	? 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
Hang
Hangkommunikáció	Two-Way Audio
Hangbemenet	Yes
Hangkimenet	Yes
Hangtömörítés	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)
Hálózat
Szabvány	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF	Yes
API	ONVIF
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager
Web Browser	Google Chrome® 57 and above
	Firefox® 52 and above
	Safari® 11 and above
	Microsoft® Edge 91 and above
Cloud	Yes
Biztonság	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Storage	NAS (NFS, SMB/ CIFS)
Figyelmeztetési és eseménykezelési vezérlés
Smart Event	Area Intrusion Detection, Line-Crossing Detection, People Detection
Basic Event	Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage	Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method	N/A
Output Notification	Message Push
Fizikai kezelőfelület
Hálózati csatlakozás	1 RJ45 10/100M Self-Adaptive Ethernet Port
Audio Input	Built-in Microphone
Audio Output	Built-in Speaker
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
Gomb	Reset Button
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in Microphone	Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker	Yes
Audio	N/A
Általános
Operating Temperature	-30–60 °C
Storage Temperature	-40–60 °C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Tömeg	195g
Csomagolás tartalma	VIGI Network Camera
	Quick Start Guide
	Waterproof Cable Attachments
	Mounting Accessories
Méret (Ma x Sz x Mé)	78 × 70 × 174 mm
Material	Plastic
General Features	Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight	0.28 Kg
Gross Weight	0.42 Kg
Power Consumption	12V DC: Max 7.5W
	PoE: Class 0
Power Supply	12V DC ± 5%, 5.5mm Coaxial Power Plug
	PoE (802.3af/at, class 0)
Protection	IP66
Product Dimensions (L x W x H)	78× 174 × 70 mm
Certifications	CE, RCM, BSMI, VCCI, RoHS, NTRA, KC
Videó/Kép
Videó tömörítés	Main stream: H.265+/H.265/H.264+//H.264
	Sub-Stream: H.265/H.264
Kép frissítés (frame) és felbontás	Main Stream
	Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080
	Sub-Stream
	Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution: 640x480, 352x288, 320x240
Videótovábbítás	Main Stream
	Sub-Stream
Képbeállítás	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image Enhancement	BLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps
	Sub-Stream: 64 Kbps to 512 Kbps
SMART FEATURE-SET
Smart Event	Area Intrusion Detection, Line-Crossing Detection, Human Detection
Basic Event	Motion Detection, Camera Tampering Detection, Exception ( illegal login)
Linkage Method	Trigger Notification: ONVIF, HTTPS
Region of Interest	1 Region

A termék adatokat harmadik fél bocsátja rendelkezésünkre tájékoztatási céllal. Az esetleg előforduló tartalmi hibákért nem tudunk felelősséget vállalni.

Adatok

Típus:

Cső

Elhelyezés:

Kültéri

Gyártói cikkszám:

VIGI C340(2.8MM)

Termék gyártója:

TP-LINK

Garancia:

36 hónap

Kialakítás:

Cső

Tápellátás:

DC / PoE

ONVIF:

Van

Hang:

Beépített Mikrofon és hangszóró

Burkolat:

Műanyag

AI felismerés:

Van

Lencse:

2,8

Max. IR távolság:

30

Felbontás:

4MP

Segéd fény távolság:

30

Segéd fény:

Hibrid

Fényerő kompenzálás:

DWDR
