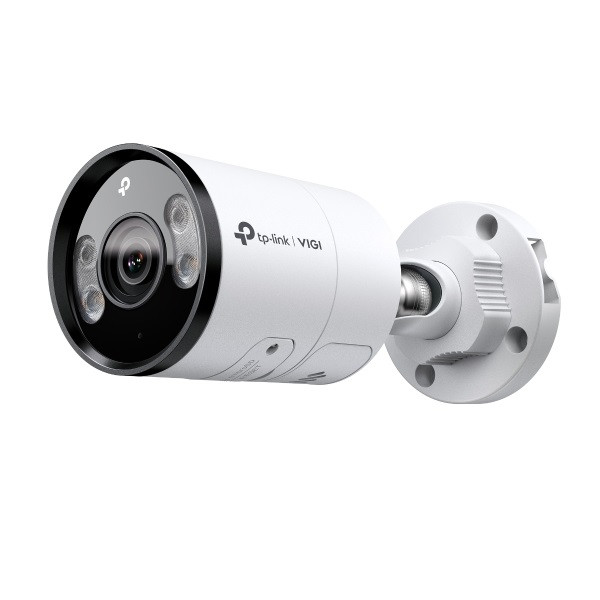

TP-Link IP csőkamera - InSight S345 (FullColor, 4MP, 2,8mm, IP67, H265+, LED+IR30m, 12VDC/PoE, SD; mikr., hangsz.; fém)

• Részletek
• Adatok
• Vélemények

Részletek

CAMERA
Image Sensor	1/2.7” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.005 Lux; 0 Lux with IR/White light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
LENS
Type	Fixed Focal Lens
Focal Length	2.8/4/6 mm
Aperture	F1.6
FOV	• 2.8 mm:
	Horizontal FOV: 100°, Vertical FOV: 54°, Diagonal FOV: 118°
	• 4 mm:
	Horizontal FOV: 80.4°, Vertical FOV: 41.8°, Diagonal FOV: 98.7°
	• 6 mm:
	Horizontal FOV: 52.7°, Vertical FOV: 29°, Diagonal FOV: 60.8°
Lens Mount	M12*P 0.5
DORI Distance	• 2.8 mm
	Detect: 64 m (210 ft)
	Observe: 27 m (89 ft)
	Recognize: 13 m (43 ft)
	Identify: 6 m (20 ft)
	• 4 mm
	Detect: 80 m (262 ft)
	Observe: 33 m (108 ft)
	Recognize: 16 m (52 ft)
	Identify: 8 m (26 ft)
	• 6 mm
	Detect: 120 m (394 ft)
	Observe: 50 m (164 ft)
	Recognize: 24 m (79 ft)
	Identify: 12 m (39 ft)
Angle Adjustment (Manual)
Range	Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
ILLUMINATOR
IR LED	• Quantity: 2
	• Range: 30m
	• Wavelength: 850nm
White LED	• Quantity: 2
	• Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution	2688 x 1520
Main Stream	• Frame Rate:
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	• Resolution:
	2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
	• Note:
	If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream	• Frame Rate:
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	• Resolution:
	848x480, 704x576, 640x480, 640x360, 352x288, 320x240
	• Note:
	If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	• Main Stream: H.265+/H.265/H.264+/H.264
	• Sub-Stream: H.265/H.264
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile*
H.265+	Main Stream Supported*
Video Bit Rate	• Main Stream: 256 Kbps to 6 Mbps
	• Sub-Stream: 64 Kbps to 512 Kbps
Image Settings	• Mirror
	• Brightness
	• Contrast
	• Saturation
	• Sharpness
	• Exposure
	• WDR
	• White Balance
	• Prevent Overexposure to Infrared Light
	• HLC Adjustable by Client Software
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	120 dB
	Note: When People & Vehicle Analytics is enabled, only DWDR is supported.
SNR	? 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
AUDIO
Audio Communication	Two-Way Audio
Audio Input	Yes
Audio Output	Yes
Audio Compression	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)
NETWORK
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF	Yes
API	ONVIF Profile S/T/G
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS
Web Browser	• Google Chrome® 57 and above
	• Firefox® 52 and above
	• Safari® 11 and above
	• Microsoft® Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event	• Intrusion Detection
	• Line-Crossing Detection
	• Region Entering Detection
	• Region Exiting Detection
	• Object Abandoned Detection
	• Object Removal Detection
	• Loitering Detection
	• People Detection
	• Vehicle Detection
	• Abnormal Sound Detection
	• Scene Change Detection
Basic Event	• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
	• Video Tampering Detection
	• Exception ( Illegal Login)
Alarm Linkage	• Memory Card Video Recording
	• Message Push
	• Audible Warning
	• White Light Flashing
Linkage Method	N/A
Output Notification	Message Push
Deep Learning Function
People & Vehicle Analytics	Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.§
INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB**
Built-in Microphone	Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker	Yes
Audio	N/A
GENERAL
Operating Temperature	-30–60 °C
Storage Temperature	-40–60 °C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Package Contents	• VIGI Network Camera
	• Quick Start Guide
	• Waterproof Cable Attachments
	• Mounting Accessories
Material	Metal
Net Weight	0.525 Kg
Power Supply	• 12V DC ± 5%, Max. 9.7 W, 5.5 mm Coaxial Power Plug
	• PoE: 802.3af/at, class 0, Max. 10.7 W
Protection	IP67
Product Dimensions (L x W x H)	7.2 × 2.9 × 2.9 in (184 × 74 × 74 mm)
Certifications	CE, NTRA, VCCI, KC, BSMI, FCC, IC

Adatok

Elhelyezés:

Kültéri

Gyártói cikkszám:

INSIGHT S345(2.8MM)

Termék gyártója:

TP-LINK

Garancia:

48 hónap

Kialakítás:

Cső

Tápellátás:

DC / PoE

SD kártya támogatás:

Van

ONVIF:

Van

Hang:

Beépített Mikrofon és hangszóró

Burkolat:

Fém

AI felismerés:

Van

Lencse:

2,8

Max. IR távolság:

30

Felbontás:

4MP

Segéd fény távolság:

30

Segéd fény:

Hibrid

Fényerő kompenzálás:

WDR
