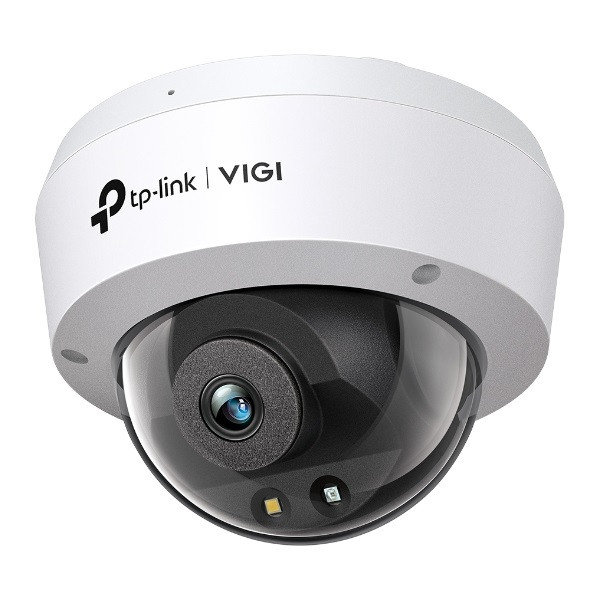

TP-Link IP dómkamera - C240 (DualLight, 4MP, 2,8mm, IK10, IP67, H265+, IR+LED30m, SD; 12VDC/PoE)

• Részletek
• Adatok
• Vélemények

Részletek

Kamera
Képérzékelő	1/3” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Aperture	2.8 mm: F1.6
	4 mm: F1.6
Optika	2.8 mm/ 4 mm
Lens Mount	M12
Min. szükséges megvilágítás	Color: 0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
Digital Noise Reduction	3D DNR
WDR	DWDR
Weatherproof Rating	IP67
Forgatási/döntési szög	Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°
Látószög	2.8mm:
	Horizontal FOV: 95.7°, Vertical FOV: 51.7°, Diagonal FOV: 113.0°
	4mm:
	Horizontal FOV: 79.7°, Vertical FOV:42.9°, Diagonal FOV: 93.9°
LENS
Type	Fixed Focal Lens
Focal Length	2.8 mm/4 mm
Aperture	2.8 mm: F1.6
	4 mm: F1.6
FOV	2.8 mm:
	Horizontal FOV: 95.7°, Vertical FOV: 51.7°, Diagonal FOV: 113.0°
	4 mm:
	Horizontal FOV: 79.7°, Vertical FOV: 42.9°, Diagonal FOV: 93.9°
Lens Mount	M12
DORI Distance	2.8 mm:
	Detect: 64 m (209 ft)
	Observe: 27 m (87 ft)
	Recognize: 13 m (42 ft)
	Identify: 6 m (21 ft)
	4 mm:
	Detect: 80 m (262 ft)
	Observe: 33 m (109 ft)
	Recognize: 16 m (52 ft)
	Identify: 8 m (26 ft)
Angle Adjustment (Manual)
Range	Pan: 0° to 355°
	Tilt: 0° to 75°
ILLUMINATOR
IR LED	Quantity: 1
	Range: 30m
	Wavelength: 850nm
White LED	Quantity: 1
	Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution	2560 × 1440
Main Stream	Frame Rate:
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution:
	2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720
	Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream	Frame Rate:
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution:
	640x480,352x288, 320x240
	Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
	Sub-Stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps
	Sub-Stream: 64 Kbps to 512 Kbps
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
	White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	DWDR
SNR	? 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
Hang
Hangkommunikáció	N/A
Hangbemenet	Yes
Hangkimenet	N/A
Hangtömörítés	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)
Hálózat
Szabvány	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
	RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF	Yes
API	ONVIF
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser	Google Chrome® 57 and above
	Firefox® 52 and above
	Safari® 11 and above
	Microsoft® Edge 91 and above
Cloud	Yes
Biztonság	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Figyelmeztetési és eseménykezelési vezérlés
Smart Event	Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event	Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage	White Light Flashing, Message Push
Linkage Method	N/A
Output Notification	Message Push
Fizikai kezelőfelület
Hálózati csatlakozás	1 RJ45 10/100M Self-Adaptive Ethernet Port
Alarm	N/A
Reset Button	N/A
Power	DC Power Port
Gomb	-
Video Output	-
On-board Storage	Built-in Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in Microphone	Yes
Built-in Speaker	N/A
Audio	N/A
Általános
Operating Temperature	-30–60 °C
Storage Temperature	-40–60 °C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Csomagolás tartalma	VIGI Network Camera
	Quick Start Guide
	Waterproof Cable Attachments
	Mounting Accessories
Méret (Ma x Sz x Mé)	115 × 115 × 86 mm
Material	Plastic
General Features	Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight	0.28 Kg
Gross Weight	0.46 Kg
Power Consumption	12V DC: Max 5.4W
	PoE: Class 0
Power Supply	12V DC ± 5%, 5.5mm Coaxial Power Plug
	PoE (802.3af/at, class 0)
Vandal Resistant	IK10
Protection	IP67, IK10
Product Dimensions (L x W x H)	115× 86× 115 mm
Certifications	CE/BSMI/VCCI/ONVIF
Videó/Kép
Videó tömörítés	Main Stream: H.265+/H.265/H.264+/H.264
	Sub-Stream: H.265/H.264
Kép frissítés (frame) és felbontás	Main Stream:
	Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720
	Sub-Stream:
	Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	Resolution: 640x480,352x288, 320x240
Max. Resolution	4MP (2560 × 1440)
Videótovábbítás	Main Stream
	Sub-Stream
Képbeállítás	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Video Bit Rate	64 Kbps to 4 Mbps
Day/Night Switch	Day/Night/Auto/Schedule
SMART FEATURE-SET
Smart Event	Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event	Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage Method	Trigger Notification: ONVIF, HTTPS
Region of Interest	1 Region

Adatok

Típus:

Dóm

Elhelyezés:

Kültéri

Gyártói cikkszám:

VIGI C240(2.8MM)

Termék gyártója:

TP-LINK

Garancia:

36 hónap

Kialakítás:

Dóm

Tápellátás:

DC / PoE

SD kártya támogatás:

Van

ONVIF:

Van

Hang:

Beépített Mikrofon

Burkolat:

Műanyag

AI felismerés:

Van

Lencse:

2,8

Max. IR távolság:

30

Felbontás:

4MP

Segéd fény távolság:

30

Segéd fény:

Hibrid

Fényerő kompenzálás:

DWDR

Vandálbiztos kivitel:

Van
