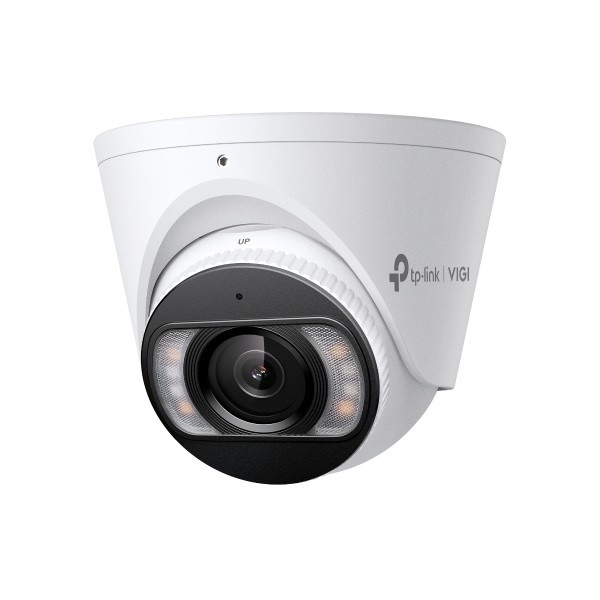

TP-Link IP turretkamera - C455 (FullColor, 5MP, 2,8mm, H265+, IP67, LED30m, IR30m, PoE/12VDC, SD, mikrofon, hangszóró)

• Részletek
• Adatok
• Vélemények

Részletek



Kamera
Képérzékelő	1/2.7” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Min. szükséges megvilágítás	0.005 Lux; 0 Lux with IR/White light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
LENS
Type	Fixed Focal Lens
Focal Length	2.8/4 mm
Aperture	F1.6
FOV	• 2.8 mm:
	Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134°
	• 4 mm:
	Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal FOV: 105.4°
Lens Mount	M12*P 0.5
DORI Distance	• 2.8 mm
	Detect: 64 m (210 ft)
	Observe: 27 m (89 ft)
	Recognize: 13 m (43 ft)
	Identify: 6 m (20 ft)
	• 4 mm
	Detect: 80 m (262 ft)
	Observe: 33 m (108 ft)
	Recognize: 16 m (52 ft)
	Identify: 8 m (26 ft)
Angle Adjustment (Manual)
Range	Pan: 0° to 360°, Tilt: 0° to 85°, Rotation: 0° to 360°
ILLUMINATOR
IR LED	• Quantity: 4
	• Range: 30m
	• Wavelength: 850nm
White LED	• Quantity: 4
	• Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution	2880 X 1620
Main Stream	• Frame Rate:
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	• Resolution:
	2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080,
	1280x720
	• Note:
	If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream	• Frame Rate:
	50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
	60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
	• Resolution:
	704x576,640x480, 352x288, 320x240
	• Note:
	If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	• Main Stream: H.265+/H.265/H.264+/H.264
	• Sub-Stream: H.265/H.264
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile*
H.265+	Main Stream Supported*
Video Bit Rate	• Main Stream: 256 Kbps to 6 Mbps
	• Sub-Stream: 64 Kbps to 512 Kbps
Image Settings	• Mirror
	• Brightness
	• Contrast
	• Saturation
	• Sharpness
	• Exposure
	• WDR
	• White Balance
	• Prevent Overexposure to Infrared Light
	• HLC Adjustable by Client Software
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	120 dB
	Note: When People & Vehicle Analytics is enabled, only DWDR is supported.
SNR	? 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
Hang
Hangkommunikáció	Two-Way Audio
Hangbemenet	Yes
Hangkimenet	Yes
Hangtömörítés	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)
Hálózat
Szabvány	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF	Yes
API	Open Network Video Interface (Profile S)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager, Web UI, VIGI VMS
Web Browser	• Google Chrome® 57 and above
	• Firefox® 52 and above
	• Safari® 11 and above
	• Microsoft® Edge 91 and above
Cloud	Yes
Biztonság	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Figyelmeztetési és eseménykezelési vezérlés
Smart Event	• Human & Vehicle Classification
	• Intrusion Detection
	• Line-Crossing Detection
	• Region Entering Detection
	• Region Exiting Detection
	• Object Abandoned Detection
	• Object Removal Detection
	• Loitering Detection
	• Smart Frame
	• People Detection
	• Vehicle Detection
Basic Event	• Motion Detection
	• Video Tampering Detection
	• Exception ( Illegal Login)
	• Scene Change Detection
Alarm Linkage	• Memory Card Video Recording
	• Message Push
	• Audible Warning
	• White Light Flashing
Linkage Method	N/A
Output Notification	Message Push
Deep Learning Function
People & Vehicle Analytics	Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Fizikai kezelőfelület
Hálózati csatlakozás	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB**
Built-in Microphone	Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker	Yes
Audio	N/A
Általános
Operating Temperature	-30–60 °C
Storage Temperature	-40–60 °C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Csomagolás tartalma	• VIGI Network Camera
	• Quick Start Guide
	• Waterproof Cable Attachments
	• Mounting Accessories
Material	Metal
Net Weight	0.48 Kg
Power Supply	• 12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug
	• PoE: 802.3af/at, class 0, Max. 12 W
Protection	IP67
Product Dimensions (L x W x H)	111 × 111 × 83.7 mm
Certifications	CE, NTRA, VCCI, KC, BSMI, FCC, IC

Adatok

Típus:

Turret

Elhelyezés:

Kültéri

Gyártói cikkszám:

VIGI C455(2.8MM)

Termék gyártója:

TP-LINK

Garancia:

48 hónap

Kialakítás:

Turret

Tápellátás:

DC / PoE

SD kártya támogatás:

Van

ONVIF:

Van

Hang:

Beépített Mikrofon és hangszóró

Burkolat:

Fém

AI felismerés:

Van

Lencse:

2,8

Max. IR távolság:

30

Felbontás:

5MP

Segéd fény távolság:

30

Segéd fény:

Hibrid

Fényerő kompenzálás:

WDR
