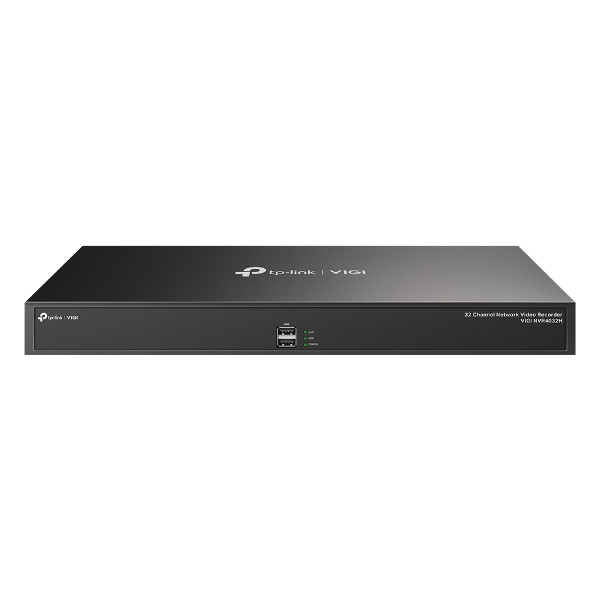

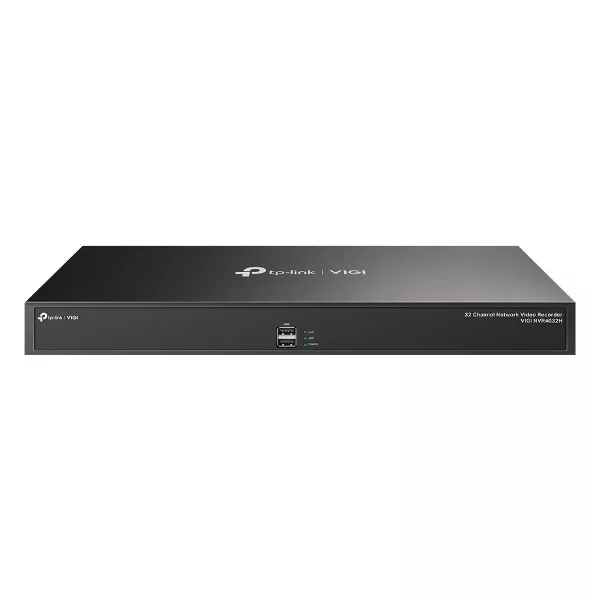

TP-link NVR rögzítő - NVR4032H (32 csatorna; H265+, 8MP, 320Mbps, HDMI, VGA, USB, 4x Sata(max10TB), audio)

• Részletek
• Adatok
• Vélemények

Részletek

Video and Audio
IP Video Input	32-Channel
Incoming Bandwidth	320 Mbps
Outgoing Bandwidth	320 Mbps
HDMI Output Resolution	1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA Output Resolution	1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Video Output Mode	HDMI/VGA Independent Output
Multi-View Display	1/4/6/8/9/16/25/32/36
DECODING
Audio Compression	G.711A/G.711U/G.726
Decoding Format	H.265+/H.265/ H.264+/H.264
Video Compression	H.265+/H.265/ H.264+/H.264
Record Resolution	8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Live View/Playback Resolution	8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/
	2CIF/CIF/QCIF
Synchronous Playback	16-Channel
Capability	16-ch @ 1080p (30 fps), 8-ch @ 4MP (30 fps), 4-ch @ 8MP
	(30 fps)
Record Management
Record Mode	• Manual Recording
	• Scheduling Recording
	• Motion Detection Recording
Playback Mode	• Instant Playback
	• Regular Playback
	• Tag Playback
	• Event Playback
Backup Mode	• Regular Backup
	• Video Clip Backup
Playback Function	• Play
	• Pause
	• Stop
	• Fast Forward
	• Fast Backward
	• Play By Frame
	• Full Screen
	• Video Clip
	• Export Clip
	• Digital Zoom
	• Lock Recording
	• Audio On/Off
Hálózat
Szabvány	UPnP (Plug and Play), NTP (Network Timing), TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile Phone Access	Android, iOS
Incoming Bandwith	320 Mbps
Outgoing Bandwidth	320 Mbps
Web Browser	Chrome (57+), Firefox (52+), Edge (91+)
Interoperability	ONVIF, CGI
External Interface
Network Interface	2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet
	Interface
USB Interface	USB Interface
Audio Interface	1, Audio In; 1, Audio Out
Alarm In/Out	16.ápr
Serial Interface	1, RS232
Power	1× AC Jack
Reset Button	1
Speaker	N/A
eSATA	N/A
HDMI	1
VGA	1
HARD DISK
SATA	4 SATA Interfaces
Capacity	Up to 10 TB Capacity for Each HDD
Alarm
General Alarm	Motion Detection, Video Tampering, Intrusion Detection,
	Line-Crossing Detection
Anomaly Alarm	Video Loss, Offline and IP Conflict,Disk Exception, Login
	Exception, Fan Exception
Alarm Linkage	Recording, White Ligh Alarm, Buzzer, Log, Audible Alarm
Network Management
Network Protocols	UPnP (Plug and Play), NTP (Network Timing)
Interoperability	ONVIF, CGI
Mobile Phone Access	Android, iOS
Browser	Chrome (57+), Firefox (52+), Edge (91+)
Record Playback
Record Mode	Manual Recording, Scheduling Recording, Motion Detection
	Recording
Playback Mode	Instant Playback, Regular Playback, Tag Playback, Event
	Playback
Backup Mode	Regular Backup, Video Clip Backup
Playback Function	Play, Pause, Stop, Fast Forward, Fast Backward, Play by
	Frame, Full Screen, Video Clip, Export Clip, Digital Zoom,
	Lock Recording, Audio On/Off
Általános
Storage Temperature	-40–70 °C
Storage Humidity	10%~90% RH Non-Condensing
Csomagolás tartalma	VIGI Network Video Recorder
	Mouse
	Installation Guide
	Power Cord, HDD Power Cables, HDD Data Cables, and Terminal Blocks
	Mounting Brackets, Screws and Rubber Feet
Working Temperature	-10–55 °C
Working Humidity	10%~90% RH Non-Condensing
Méretek (Sz x Mé x Ma)	440 × 330 × 44 mm
Külső tápellátás	100-240 VAC, 50 to 60HZ, 1.5A
Net Weight	4.0 Kg
Gross Weight	5.2 Kg#
Power Supply	100-240 VAC, 50 to 60HZ, 1.5A
Power Consumption	5 W (Without Disk)
	48 W (With Disk)
Certifications	CE, EAC, UKCA, RCM, Triman, RoHS, VCCI, FCC, IC, HDMI
Videó/Kép
IP Video Input	32-Channel
Multi-View Dispaly	1/4/6/8/9/16/25/32/36
Video Output Mode	HDMI/VGA Independent Output
Recording Resolution	8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/
	2CIF/CIF/QCIF
HDMI Output Resolution	1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz,
	1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz,
	1280x720/60Hz, 1024x768/60Hz
VGA Output Resolution	1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz,
	1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz,
	1024x768/60Hz



A termék adatokat harmadik fél bocsátja rendelkezésünkre tájékoztatási céllal. Az esetleg előforduló tartalmi hibákért nem tudunk felelősséget vállalni.

Adatok

Gyártói cikkszám:

VIGI NVR4032H

Termék gyártója:

TP-LINK

Garancia:

48 hónap

Max rögzíthető csatornák száma:

32

Max rögzíthető IP kamera felbontás:

8MP

Max. merevlemezek száma:

4

Csatornák száma:

32

LAN csatlakozók száma:

2

HDD száma:

4

Max. IP kamera felbontás:

8MP

LAN csatlakozó szám:

2

Onvif támogatás:

Van

I/O csatlakozók száma:

16/4
