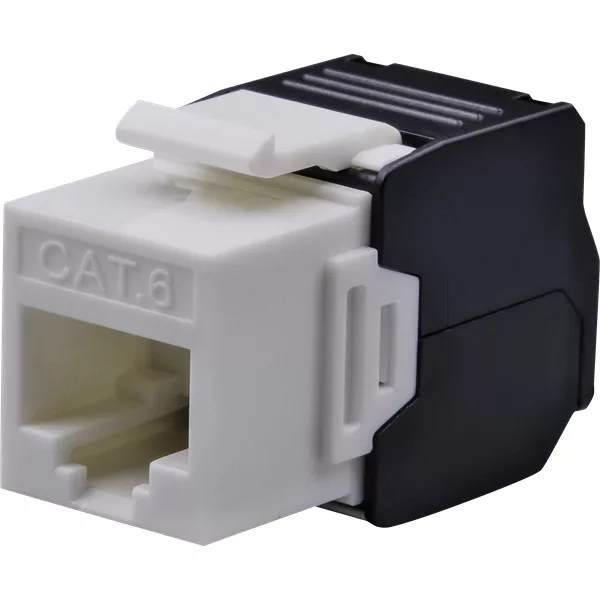

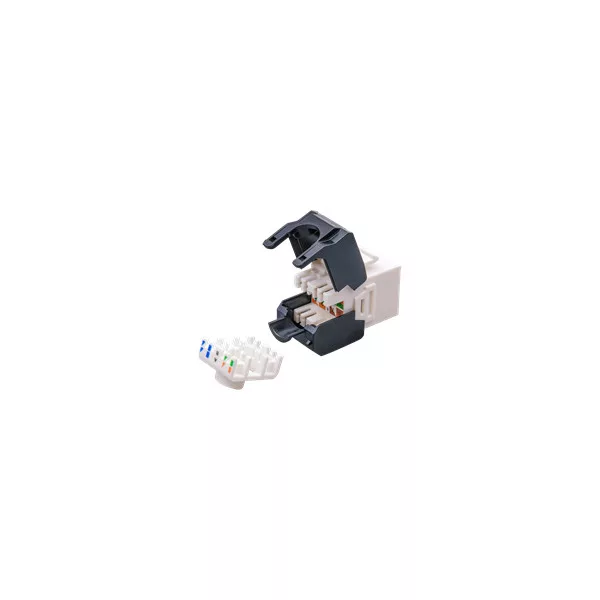

Walisec Keystone - RJ45-KJ6U-TL (Cat6, árnyékolatlan, Tool-less)

Name: Walisec Keystone - RJ45-KJ6U-TL (Cat6, árnyékolatlan, Tool-less)
Brand: WALISEC
SKU: URDHALWALRJ45KJ6UTL
Availability: InStock

Szállítási idő :

3 munkanap

Gyártó:

WALISEC

Walisec Keystone - RJ45-KJ6U-TL (Cat6, árnyékolatlan, Tool-less)

Connector Type
Category	Cat 6
Shielding	Unshielded
Connector	RJ45 Jack
Angle	180°

Material
Housing Material	PBT
IDC Material	PC Contact Jaw: Phosphor Bronze with Tin Plating, thickness = 0.5 mm
Contact Material	Phosphor Bronze with Nickel Plating, thickness = 0.3 mm
Contact Surface Material	Gold Plating, thickness = 3U (3μin or 0.0762 µm)
PCB Material	FR-4, thickness = 1.6 mm

Electrical Properties
Voltage/Current Rating	125 VAC RMS / 1.5 A
Insulation Resistance	≥ 1000 MΩ at 500 VDC
Contact Resistance	≤ 100 mΩ
Dielectric Strength	750 VAC RMS, 60 Hz, 1 minute

Mechanical Properties
RJ45 Jack	≥ 750 mating cycles
IDC Lifespan	≥ 250 termination cycles
Wire Gauge	AWG 22-26
Wiring Scheme	T568A/T568B

Environment
Operating Temperature	-25°C to 70°C
Operating Humidity	RH 10% to 90% (non-condensing)
Storage Temperature	-40°C to 85°C
Storage Humidity	RH 5% to 96% (non-condensing)

General
Dimension	16.3 x 21.3 x 37.4 mm (WxHxD)
Net Weight	7.8 g

Diagram	unit: mm

Típus:

Keystone

Gyártói cikkszám:

RJ45-KJ6U-TL

Termék gyártója:

WALISEC

Garancia:

60 hónap
