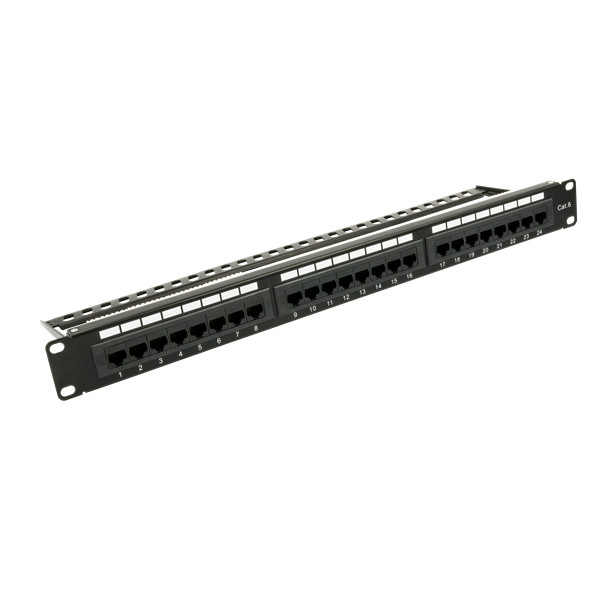

Connector Type
Category
Cat 6
Shielding
Unshielded
Connector
3*8 x RJ45 Jacks

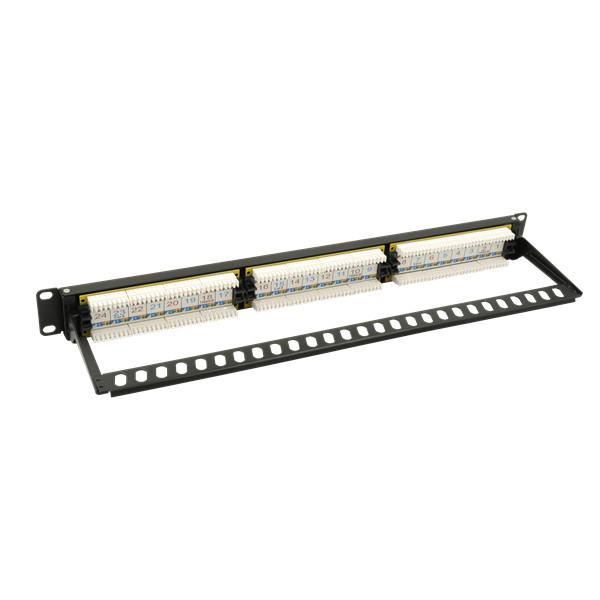

IDC Type
Dual (110 & Krone)
Material
Housing Material
PBT
IDC Material
PC
Contact Jaw: Phosphor Bronze with Tin Plating, thickness = 0.8 mm
Contact Material
Phosphor Bronze with Nickel Plating, thickness = 0.45 mm
Contact Surface Material
Gold Plating, thickness = 1U (1μin or 0.0254µm)
PCB Material
FR-4, thickness = 1.6 mm
Panel Frame
Carbon Steel, Powder-Coated in Black, SPCC 1.5 mm
Electrical Properties
Voltage/Current Rating
125 VAC RMS / 1.5 A
Insulation Resistance
≥ 1000 MΩ at 500 VDC
Contact Resistance
≤ 100 mΩ
Dielectric Strength
750 VAC RMS, 60Hz, 1 minute
Mechanical Properties
RJ45 Jack
≥ 750 mating cycles
IDC Lifespan
≥ 250 termination cycles
Wire Gauge
AWG 22-26
Wiring Scheme
T568A/T568B
Environment
Operating Temperature
-25°C to 70°C
Operating Humidity
RH 10% to 90% (non-condensing)
Storage Temperature
-40°C to 85°C
Storage Humidity
RH 5% to 96% (non-condensing)
General
Installation
Rack Mount, Standard 19-inch
Dimension
482.6 (19") x 44.45 (1U) x 121 mm (WxHxD)
Net Weight
670 g
Gross Weight
780 g
